Using DMT Tool v7 with Speedtouch routers

adsl bar




The following information is given as a guide only and you make any changes at your own risk.

Version 7 of the DMT tool works for the following routers:
Speedtouch 510v6, 516, 536, 546, 576, 585, 608, 706, 716, 780
If you have the Speedtouch 716g then you need DMTv8

Please note that in firmware versions 6.2+ Thomson have removed the ability to access some features after complaints from a UK ISP. Therefore all sections of DMT may not be available -in particular the SNR tweak.
Firmware version 6.1.4.3 is that last version that the SNR tweak will work with. - Download
Various firmware versions for the ST585v6 are also available for download from chrysalisnet.org

Later versions of the ST routers (including the TG585v7) may display Bit loading channels, but you will not be able to SNR tweak. To do this, before you connect DMT to your router, From Special >> Misc.options >> Firmware specific >> tick "allow untested firmware versions".

The DMT Tool can be downloaded from http://dmt.mhilfe.de/ - you need v7.
The site is German but when you install DMT you have the option to select English.
A translation of the page can be viewed here.

Running DMT

  • Download and unzip into a folder.
  • Click DMT.exe to start the program.
  • Select "English"
  • Select "Annex A"

Configuring DMT

  • Insert your routers IP address (normally 192.168.1.254)
  • Insert your router login and password (default = Administrator, password is left blank)
  • Click "Connect".

DMT tool setup

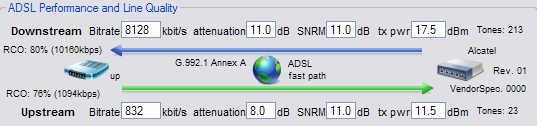

Your Line stats

DMT shows you your current line stats from your router. With adsl the figures we are normally the most interested in are the first 3 downstream figures.

  • Bit rate - Your sync or connection speed.
  • Attenuation - reduction in signal strength quality and directly related to the length of your line. The lower the figure the better the line. This figure should stay static.
  • SNRM - Signal to Noise Ratio Margin. This figure is subject to fluctuations of Noise. The higher your SNR Margin, the better the signal strength to background noise.
  • tx pwr - transmit power
  • RCO - Routers estimation of maximum achievable sync speed on adsl expressed as a %.
  • ADSL fast path - Will either be fast or interleaved, depending if interleaving is switched on or not.

DMT line stats

Line Stats and Condition

DMT connects to your router and will show you other information about your line and the router, such as the number of line errors and router performance.

line condition

Frequency Channels

Show which range of frequencies are being used by your router and the strength of the signal for that particular carrier bin.

DMT frequency channels and signal strength

Tone no is the carrier bin used by that particular frequency. Bottom figure shows the frequency range in kHz. The above diagram shows healthy stats. Dips can help identify areas where there may be RF interference. Bin 64 is a pilot-tone and is normal on adslv1.

SNR Monitoring

Your SNR Margin plays a big part in the condition of your line particularly with maxdsl/radsl. If your SNR Margin drops too low then your connection starts to become unstable. You will likely see CRC etc errors and errored seconds and your connection may drop. You can monitor your SNR Margin over a period of time using DMT tool, and the graph will show any fluctuations in your SNR Margin.

DMTv7 has a 2 sets of figures that it can show you for SNR Monitoring. When first turned on it will show you the SNR fluctuation for each individual channel (bin). You can also get it to record the overall SNR fluctuation over a period of time. To turn this on simply set the monitor interval (default is 8 seconds) and press the Start Button.

Monitoring your SNR with DMT

The above screen shot shows both the channel fluctuations, and you can see on the left DMT starting to record overcall SNR fluctuation. If both records are confusing and you only want the overall figures simply untick the snrft checkbox.

By default the SNR monitoring is over a 60 minute period but you can change this setting in the drop down box in Special > Misc.Options from the top toolbar.

For more information on SNR see my line stats page.

Changing your Target SNR.

Each time you connect, your router will try and sync at the highest speed it can whilst still allowing a safe margin of SNR to allow for normal noise fluctuations that occur over the course of the day. The default Target SNR is 6dB, but the DLM at the exchange can also set your Target SNR to 6, 9, 12 or 15dB.

Possibly the easiest way of finding out the Target SNR set on your line is checking your SNR Margin immediately after a resync. Generally speaking if your SNR Margin is 6dB then your Target SNR is likely to be 6dB.
Please note that this method is not fool-proof because lines that have a good overhead of SNR and are able to sync at the full 8128 kbps (or 7616 with Interleaving), will show a higher figure anyhow.

Sometimes your Target SNR may not be perhaps quite the best for your line and you may wish to change this yourself, by either increasing your Target SNR to improve stability of your line. Or it may be that your SNR Margin is normally very stable and you want to see if by bringing your Target SNR down you can perhaps get a bit more speed.

Enabling the Hidden 5th Tab to change your Target SNR

  • From the top toolbar select
    • Special
    • Misc. Options
  • A new window will open Misc. Options/Settings
  • From Expert Settings -
  • Tick the checkbox "unlock experimental area Panel/Last Tab
  • Click the "Save/Close" Button

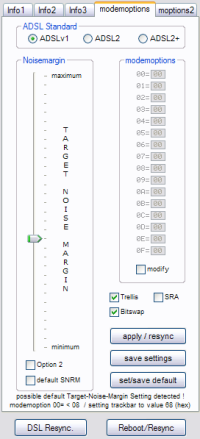

The slider allows you to adjust your Target SNR within a minimum and maximum figure.

The slider is supposedly to the scale of 10 notches = 1dB of SNR. As a guide you should increase the Target SNR for a lower sync and more stability, and decrease if your line is stable and you are looking for higher speeds.

To apply the setting click the top button and your router will resync to the exchange. The "Save Settings" button saves your preferred setting to the Flash memory of your router, so its recommended you only do this once you are happy with your settings.
"set/save default" returns settings to the way they were before you used DMT.

DMT SNR Slider adjustment
